What is sieve shaker machine

Monday September-12 2022  09:27:27

Sieve shaker machine is an instrument for powder, particle, suspension separation and particle size distribution of various materials, commonly used in laboratory for particle size analysis. 8 sieve frames can be installed at one time, and each feeding amount can reach 2kg.

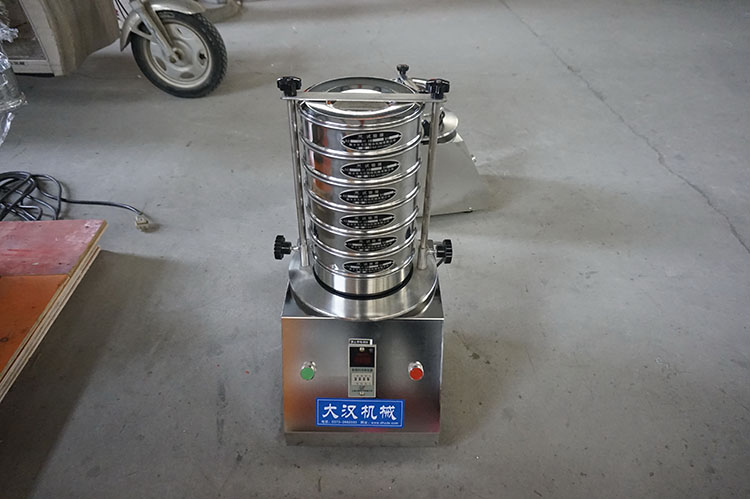

Sieve Shaker Machine Product Details

Sieve shaker machine price: $600.00/Set

Diameter of screen frame: 75mm, 100mm, 200mm, 300mm

Screen material: Wire woven mesh (mesh from 0.02mm-2.36mm, only square holes.),Punching plate screen (mainly used in large mesh, there are two kinds of round holes and square holes; mesh from 0.2 to several hundred millimeters),

Electroforming screen (mainly used in high-precision occasions, each mesh can be within the average error range).

Screening particle size: 0.025-3mm

Vibration frequency: 1400 times/min

Sieve Shaker Machine Specifications

No.	name	unit	parameter
01	frame	the number of layer	1-8
02	frame diameter	mm	&200
03	sieve size	mm	0.025-3
04	noise	dB	less than 50
05	amplitude	mm	2-500
06	vibration frequency	times/min	1440
07	outside dimension	LWH	350*350*(300+n*5)
08	power supply	V;HZ	200;50
09	machine weight	kg	2-500
10	vibration motor	power	o.12kw

Aperture and Mesh Conversion

No.	Type	Mesh(mm)	No.	Type	Mesh(mm)
1	8#	2.360	15	70#	0.212
2	10#	2.000	16	80#	0.180
3	12#	1.700	17	100#	0.150
4	14#	1.400	18	120#	0.125
5	16#	1.180	19	140#	0.106
6	18#	1.000	20	170#	0.09
7	20#	0.850	21	200#	0.075
8	25#	0.710	22	230#	0.063
9	30#	0.600	23	270#	0.053
10	35#	0.500	24	325#	0.045
11	40#	0.425	25	400#	0.038
12	45#	0.355	26	500#	0.028
13	50#	0.300	27	>500#	<0.028
14	60#	0.250

Sieve Shaker Machine Construction and Diagram

The structure of Sieve shaker machine mainly includes screen machine, screen mesh, screen frame and skirt. The screen is an important part of the sieve shaker machine. The commonly used stainless steel woven wire mesh is a square hole. There is a frame outside the screen, which is the screen frame. The shape is a circular metal ring, which is used to fix the mesh in place. ; The main function of the skirt is to allow the sieves to be stacked without tipping over.

Sieve Shaker Machine Features

High screening accuracy: It can be used for particle size classification and particle size analysis of slurries and powders, with accurate screening accuracy and high efficiency, and can be screened to 0.025-3mm.

Automatic shutdown: a time relay is installed, and the screening time can be set by itself, and the machine will automatically shut down. The time is adjustable from 1s to 99h to ensure the repeatability and consistency of the experiment.

Stainless steel material: The screen frame is made of SUS304 (0Cr18ni9) stainless steel by stretching and polishing, with a wall thickness of 0.6 mm, high temperature resistance below 300 ° C, acid and alkali corrosion resistance, not easy to rust, and non-magnetic.

Multiple sorting specifications: 1-7 layers of screen frames can be installed, and there are many material classifications, and 8 particle segments with different particle sizes can be precisely separated at the same time.

Sieve Shaker Machine Uses

The Sieve shaker machine can be used in laboratories and scientific research departments to accurately analyze the particle size structure of particles and powders, as well as test and analyze the solid content and impurity content in liquids.
