Standard Sieves

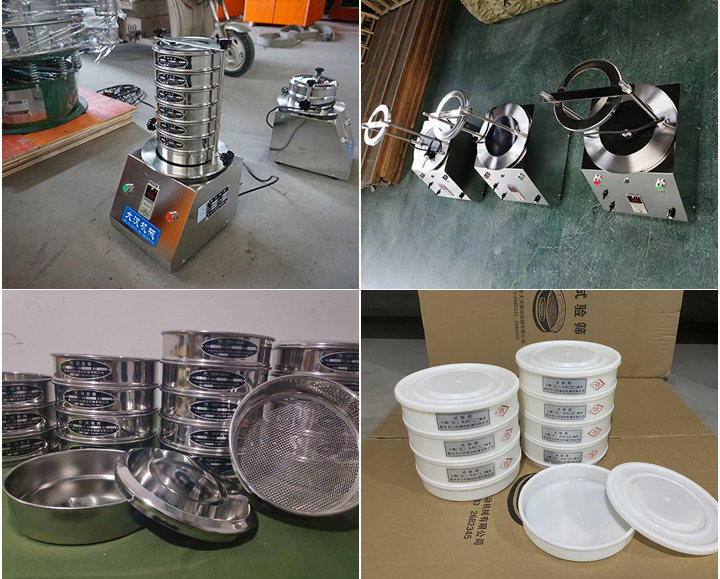

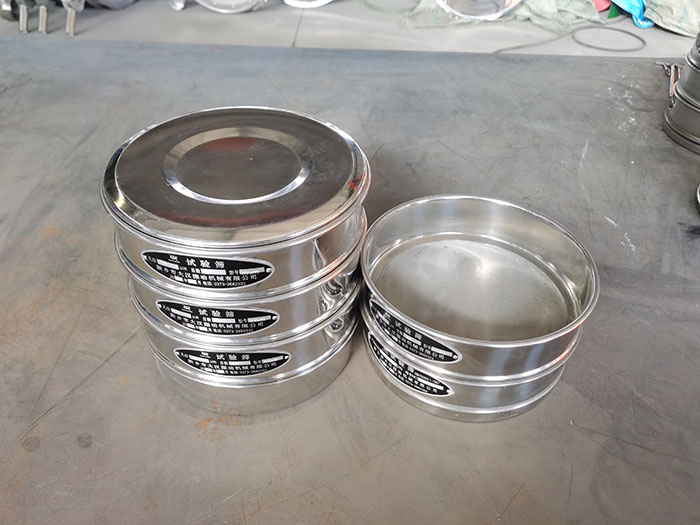

What is Standard Sieves?

Standard Sieves, also known as standard test sieve, is a tool used for particle size separation and detection of powder, granule and liquid materials, with diameters of 75mm, 100mm, 200mm, 300mm, 400mm and other models, which can precisely separate a granular material into 2 at the same time -7 particle segments, automatic shutdown at regular intervals to ensure test repeatability.

• Powder Classification

• Flour Testing

• Sieved Talc Powder

Standard Sieves Application

Standard Sieve is widely used in scientific research and production departments, laboratories and quality inspection rooms in abrasives, geology, metallurgy, pharmacopoeia, metallurgy, chemical industry, medicine, powder, building materials, national defense, geology and other industries to screen granular and powdery materials. Separation, filtration and detection; specific materials include: food industry (corn, starch, flour, salt, soybean milk,), pharmaceutical industry (Chinese medicine powder, western medicine granules), chemical industry (fertilizer, resin, paint, metal powder, quartz sand) , Metallurgical industry (aluminum powder, copper powder, alloy powder, electromagnetic materials, refractory materials, alumina).

How many types of mesh are there in Standard Sieves?

Wire mesh

Widely used mesh - 2.36mm to 0.02mm square hole

The cost of the wire mesh is low, the flexibility is good, but the relative accuracy is low (large mesh holes are allowed), the mesh holes may be deformed, and the mesh hole accuracy can be controlled by expanding and shrinking holes, and the holes can be fixed by electrochemical methods. Generally, manufacturers with high-precision screen production capacity are required to ensure mass production. Most of the application industries are the diamond industry, especially the export manufacturers require a standard negative difference, because the difference between foreign countries and China is half a size, and the basic particles account for more than 90%. .

Perforated plate screen

Mainly used in large mesh - round and square holes from 0.2mm to several hundred mm

The punching plate screen refers to the screen that uses a punch to punch out the target pattern in the plate to be processed. The materials are stainless steel, aluminum plate, hot and cold steel plate, copper plate, PVC plate film, etc. The mesh accuracy of the punching plate screen Uniform and not easily deformed, mainly used for the detection of large particles, the hole types include long holes, round holes, square holes, triangular holes, fish scale holes, bridge holes, diamond holes, pentagonal holes, hexagonal holes, character eight holes, cross holes, nails There are many kinds of holes, plum blossom holes, herringbone holes, I-shaped holes and other special-shaped holes.

Electroforming screen

Mainly used for high-precision screening - each mesh can be within the average error range

Electroforming screen is manufactured by electrochemical method, with high precision. Theoretically, the precision can reach one micron. The biggest feature is that the screen hole of the rigid structure will not be deformed. Using electroformed filter material has a significantly narrower particle size distribution, requiring cleaner and less maintenance compared to woven wire mesh filter material, allowing for longer filtration times and service life to greatly increase production efficiency. It has a very wide range of applications in high-precision laboratory particle size detection scenarios.

Standard Sieves Features

1. The screening accuracy is accurate and the efficiency is high, which can be screened to 0.025-3mm.

2. The screen frame is made of SUS304 stainless steel by stretching and polishing, the wall thickness is 0.6mm, the gloss is uniform and durable, and there is no magnetism.

3. The screen mesh and the screen frame are fixed by soldering to prevent the problem of loosening and shaking, and can work stably at a temperature of >300 degrees.

4. Equipped with time relay control, the timing time is 0-99 minutes, which can ensure the repeatability of the experiment.

5. A granular material can be precisely separated into 2-7 particle segments at the same time.

How Standard Sieves Works

Standard sieves uses YZU vertical vibration motor as the vibration source of the whole machine. The vibration motor drives the upper vibrating disc to vibrate, and then transmits it to the upper screen frame of the vibrating disc through the vibrating disc. The material particles with the aperture of the screen mesh are screened to the lower screen frame. In this way, only the material of the same particle size is left in each screen frame, so as to achieve the separation of different particle sizes and determine the particle size composition of the material, so that the material in the screen frame can be separated. It can effectively play the purpose of filtering, grading and sieving.

Standard Sieves Model

serial number	name	unit	parameter
01	sieve frame	layer	1~5
02	screen frame diameter	mm	300,200,100
03	sieve particle size	mm	0.025~3
04	noise	dB	less than 50
05	amplitude	mm	0~3
06	vibration frequency	times/min	1400
07	external dimensions	length*width*height	350:350:300+N*50
08	power supply	V；HZ	220；50
09	machine weight	Kg	36

What are the Standard Sieve Sizes?

Standard Sieve coarse sieve sizes are greater than 4.75mm and finer sieves are smaller than 4.75mm and range as small as 75 microns.

mesh size	Standard mesh	mesh size	Standard mesh
4.75mm	4 mesh	0.355mm	45 mesh
4.00mm	5 mesh	0.300mm	50 mesh
3.35mm	6 mesh	0.250mm	60 mesh
2.80mm	7 mesh	0.212mm	70 mesh
2.36mm	8 mesh	0.180mm	80 mesh
2.00mm	10 mesh	0.150mm	100 mesh
1.70mm	12 mesh	0.125mm	120 mesh
1.40mm	14 mesh	0.106mm	140 mesh
1.18mm	16 mesh	0.090mm	170 mesh
1.00mm	18 mesh	0.0750mm	200 mesh
0.850mm	20 mesh	0.0630mm	230 mesh
0.710mm	25 mesh	0.0530mm	770 mesh
0.600mm	30 mesh	0.0450mm	325 mesh
0.500mm	35 mesh	0.0374mm	400 mesh
0.425mm	40 mesh

Standard Sieves Structure

Standard Sieves is mainly composed of top cover, round handle, tight top handle, screw, vibration tray, vibration motor, timer and other structures.
