Pharmacopoeial Sieves

What is Pharmacopoeial Sieves?

Pharmacopoeial sieves, also known as standard pharmacopoeia sieves, are sieves used in the production of pharmaceuticals in accordance with the provisions of the Chinese Pharmacopoeia and national unified specifications. It is mainly used for grading, screening, filtering, and impurity removal of liquid, powdery, and granular drugs by manufacturers of traditional Chinese medicine, western medicine, and preparations or pharmacopoeia units. Pharmacopoeia sieves can be sieved manually or used in conjunction with test sieves. "Chinese Pharmacopoeia" CH.P1-9 all-stainless steel standard pharmacopoeia test sieves (10 mesh-200 mesh), No. 1 sieve has large sieve holes, No. 2 and No. 3 , No. 4, No. 5, No. 6, No. 7, No. 8, and No. 9 decrease in turn. The mesh numbers are: 10 mesh, 24 mesh, 50 mesh, 65 mesh, 80 mesh, 100 mesh, 120 mesh, 150 mesh, 200 mesh.

Pharmacopoeial sieves have two specifications: Φ200*50 and Φ300*50, of which Φ200*50 is a commonly used specification, which is divided into wire woven mesh pharmacopoeia sieves and metal punched plate pharmacopoeia sieves. The mesh conforms to GB/T6003-1997, which is equivalent to international Standard IS03310. The basic size of the mesh is 2.36mm-0.020mm for the wire woven mesh test sieve, and the mesh material is stainless steel. The metal punching plate test sieve is 3-20mm, and the screen material is stainless steel.

Pharmacopoeial Sieves Video

• The traditional Chinese medicine powder is sieved, and the powder is more delicate.

• Pharmacopoeial Sieves sieves Ganoderma lucidum robe powder, selects a 600-mesh sieve, does not stick to the mesh

• Pharmacopoeial Sieves Filtered Western Medicine Powder

Pharmacopoeial Sieves Application

Pharmacopoeia sieve is used for grading, sieving, filtering and removing impurities in liquid, powdery and granular medicines in traditional Chinese medicine, western medicine, preparation manufacturers or pharmacopoeia units.

No. 1-9 Pharmacopoeia sieve to sieve the powder to achieve the following effects:

Coarse powder refers to the powder that can pass through the No. 1 sieve completely, but mixed with no more than 20% of the powder that can pass through the No. 3 sieve;

Coarse powder refers to the powder that can pass through the No. 2 sieve completely, but mixed with no more than 40% of the powder that can pass through the No. 4 sieve;

Medium powder refers to the powder that can pass through the No. 4 sieve completely, but mixed with no more than 60% of the powder that can pass through the No. 5 sieve;

Fine powder refers to the powder that can pass through No. 5 sieve completely, and contains not less than 95% of which can pass through No. 6 sieve;

Fine powder refers to the powder that can pass through the No. 6 sieve and contains not less than 95% of the powder that can pass through the No. 7 sieve;

Very fine powder refers to the powder that can pass through the No. 8 sieve and contains no less than 95% of the powder that can pass through the No. 9 sieve.

How much minimum amount of powder is required for sieve analysis as per pharmacopoeial?

Pharmaceutical Powder Properties	Pass All	Mixed Pass
coarser powder	No. 1 sieve (10 mesh)	No. 3 (50 mesh) sieve not exceeding 20%
coarse powder	No. 2 sieve (24 mesh)	No. 4 sieve (65 mesh) no more than 40% powder
medium powder	No. 4 sieve (65 mesh)	No. 5 sieve (80 mesh no more than 60% powder
fine powder	No. 5 sieve (80 mesh)	No less than 95% powder with No. 6 sieve (100 mesh)
finer powder	No. 6 sieve (100 mesh)	No. 7 sieve (120 mesh) no less than 95% powder
very fine powder	No. 8 sieve (150 mesh)	No. 9 sieve (200 mesh) no less than 95% powder

Pharmacopoeial Sieves Specifications

Pharmacopoeial sieves size: 200mm*50mm or 200mm*25mm

The sieve size of Pharmacopoeial sieves: No. 1 sieve has a large sieve opening, and No. 2, No. 3, No. 4, No. 5, No. 6, No. 7, No. 8, and No. 9 decrease in turn.

Pharmacopoeial sieves mesh number: 10 mesh, 24 mesh, 50 mesh, 65 mesh, 80 mesh, 100 mesh, 120 mesh, 150 mesh, 200 mesh.

Sieve Number	Aperture(μm)	Tolerance range (μm)	Mesh
S-1	2000	±70	10 mesh
S-2	850	±29	24 mesh
S-3	355	±13	50 mesh
S-4	250	±9.9	65 mesh
S-5	180	±7.6	80 mesh
S-6	150	±6.6	100 mesh
S-7	125	±5.8	120 mesh
S-8	90	±4.6	150 mesh
S-9	75	±4.1	200 mesh

Pharmacopoeial Sieves Features

1. A set of pharmacopoeia sieve consists of 9 pharmacopoeia sieves with different meshes, 1 non-porous sieve, and 1 sieve cover (also known as the bottom and cover).

2. The screen frame is made of SUS304 (0Cr18ni9) stainless steel stretched and polished, the wall thickness is 0.6-0.7mm, the surface is smooth, the overall shape is strong and durable, and there is no magnetism. The screen and the screen frame are fixed by soldering without loosening. Can withstand high temperature below 300 degrees.

3. Good performance: the mesh is accurate, there are various meshes such as wire mesh, square hole, round hole, punching hole, etc. It has the characteristics of anti-corrosion, anti-rust, non-magnetic, high temperature resistance, etc., and can guarantee the production of the same model at any time Pharmacopoeia sieves are consistent and interchangeable.

How Pharmacopoeial Sieves Work

The motor drives a plane on which the Pharmacopoeia sieve can be installed, making regular or irregular horizontal circular motions. According to the standards and application requirements of different industries, the sieve can be fixed on this plane for regular circular motion, or the sieve can be placed on a moving plane with an adjustable 0-30mm gap, so that the sieve can be affected by the horizontal movement during the horizontal movement. The soft collision from the four horizontal directions slightly changes the direction of the circular motion, so that the screened materials in the analysis sieve can continuously change the moving direction on the horizontal plane, disperse the materials and accelerate the screening process.

Pharmacopoeial Sieves Mesh Comparison Table

A set of pharmacopoeial sieves consists of 9 pharmacopoeia sieves with different meshes, 1 non-perforated sieve, and 1 sieve cover (that is, the bottom and the cover). The general definition of pharmacopoeial sieves mesh number refers to the number of meshes in the area of 1 inch * 1 inch, that is, the mesh number of the sieve. The number of meshes that the material can pass through the mesh is defined as the number of meshes: for example, 200 mesh, that is, the material can pass through a screen with 200 meshes within 1 inch * 1 inch. By analogy, the larger the mesh number, the finer the material particle size, and the smaller the mesh number, the larger the material particle size.

Pharmacopoeial Sieves			conventional screen
Pharmacopoeial Sieves number	Pharmacopoeial Sieves mesh	Average inner diameter of sieve holes	Sieve size (mm)	Standard mesh (mesh)
			4.75	4
			4.00	5
			3.35	6
			2.80	7
			2.36	8
1	10	2000±70μm	2.00	10
			1.70	12
			1.40	14
			1.18	16
			1.00	18
			0.850	20
2	24	850±29μm	0.710	25
			0.600	30
			0.500	35
			0.425	40
			0.355	45
3	50	355±13μm	0.300	50
4	65	250±9.9μm	0.250	60
			0.212	70
5	80	180±7.6μm	0.180	80
6	100	150±6.6μm	0.150	100
7	120	125±5.8μm	0.125	120
8	150	90±4.6μm	0.106	140
			0.090	170
9	200	75±4.1μm	0.0750	200
			0.630	230
			0.0530	270

Pharmacopoeial Sieves Auxiliary Equipment

Pharmacopoeial sieves of Dahan Machinery can be sieved by hand, and can also be used with sieve shaker in order to improve efficiency. In actual production, industrial sieves are often used. The specifications of such sieves should be the same as those of pharmaceutical sieves and will not affect the quality of medicines. .

Pharmacopoeial Sieves Test Method

1. The wire mesh is inspected on a frosted glass inspection table with a uniform light source below. Those with a mesh size larger than 1.00mm are allowed to be inspected on an inspection table without a light source background.

2. When inspecting the size of the large mesh, it should be measured accurately. The precision of the measuring device shall be at least 2.5 μm or 1/10 of the median deviation of the mesh size, whichever is greater.

3. Inspection of weaving quality: Visual inspection or observation with a magnifying glass of 5 to 25 times. Defects and scrapped parts should be clearly marked.

4. Inspection of the size of the large mesh: First, find the large hole by visual inspection, and then use the corresponding instrument or measuring tool to measure the size, but the distance from the edge of the mesh should not be less than 20mm, and the distance between the midpoint of the mesh should be measured when measuring the mesh size. .

5. The number of large meshes of a screen with a mesh size of less than 1mm is measured on a 100 mmX 100 mm mesh surface; the number of large meshes of a mesh with a mesh size greater than or equal to 1mm is measured on a 200 mmX200mm mesh surface.

6. Inspection of the arithmetic mean size of the mesh: at the point where the size of the mesh has a large deviation, three locations should be measured according to the warp and weft directions. Not less than 20 mm from the edge of the screen.

Pharmacopoeial Sieves Manufacturer

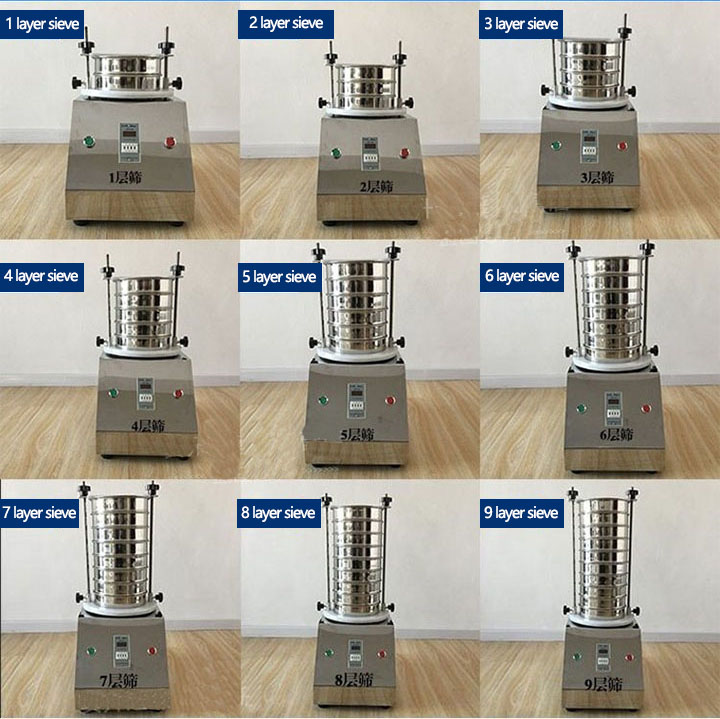

Dahan Pharmacopoeial Sieves Manufacturer For Sale Pharmacopoeial Sieves Machine, Stainless Steel Pharmacopoeial Sieves, Brass Pharmacopoeial Sieves, Metal Woven Mesh Pharmacopoeial Sieves, electroforming Pharmacopoeial Sieves and other equipment, the number of layers is 1-8 layers, the models are 100mm, 200mm, 300mm, 400mm, etc., factory direct sales, the price is as low as $100.
