Laboratory Sieve Shaker Machine

What is Laboratory Sieve Shaker Machine?

Laboratory Sieve Shaker Machine is a tool for screening and testing the particle size composition and particle size of various powdery, granular and liquid materials within 20µm-125mm; the whole machine is produced according to the national standard ISO3310-3: 1990, and is made of stainless steel. Corrosion-resistant, high-temperature-resistant, equipped with a time controller, it can stop automatically at regular intervals to ensure the accuracy of material detection. Laboratory Sieve Shaker Machine is widely used in scientific research and production, laboratories and quality inspection rooms of metallurgy, powder, chemical industry, pharmaceuticals, building materials, geology, national defense and other departments for precise screening and detection of particle size analysis.

Laboratory Sieve Shaker Machine Video

• Testing pharmaceutical powders: very fine powder No. 8 sieve (150 mesh) No. 9 sieve (200 mesh) no less than 95% of the powder

• Screening quartz sand is divided into different material grades

• The metal powder 600 mesh mesh quickly passes through the mesh

Types of Laboratory Sieve Shaker Machines

Classification	Laboratory sieve shaker machine	Ultrasonic Laboratory sieve shaker machine	Electromagnetic Laboratory sieve shaker machine	Rotap sieve shaker
Application	Used in laboratories, universities and other scientific research institutions for particle size detection, particle size analysis, and debris content analysis.	Suitable for fine powder with high static electricity, strong adsorption force, high density and light specific gravity.	Dry or wet sieving or micro-precision sieving for quantitative particle size analysis of various solids and suspensions.	For production and grading in the diamond powder and superhard materials industry
Features	The mesh size of the matching screen frame can generally reach 8 mesh to 400 mesh, which can divide the material into 2-7 different particle segments.	Screen down to 20 microns without clogging the screen.	The vibrating screen machine with electromagnetic drive has a reciprocating suspension movement inside the material, and no material remains on the screen when sieving. Handling capacity up to 2kg, measuring range from 5μm-63mm.	Faster blanking with horizontal circular motion and vertical top motion for accurate and consistent particle analysis testing.

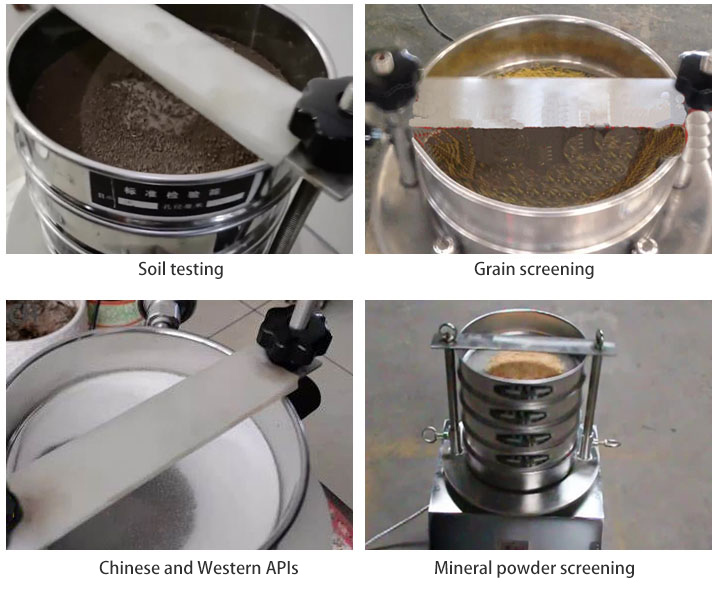

Laboratory Sieve Shaker Machine Application

Laboratory Sieve Shaker Machine is used to separate and classify particles according to their size, shape and density, commonly used in particle size analysis and quality control in industries such as pharmaceutical, food processing, ceramics, mining and metallurgy; some common materials include pharmaceutical powder, food Composition, soil samples, sand, gravel, minerals ,plastic Granules, aggregates, gravel, soil, soybeans, red beans, mung beans, sorghum rice, rice, sesame, millet, corn flour and flour.

Pharmaceutical industry: Used to analyze the quality of raw materials and final products, helping to ensure that the particle size distribution of ingredients is uniform and within specifications.

Food processing industry: For quality control and ensuring consistent food particle size.

Mining and Metallurgical Industry: Used to analyze the particle size distribution of minerals and ores; this aids in the classification of materials and in determining the efficiency of processing plants.

Ceramic Industry: For analyzing the particle size distribution of raw materials used to manufacture ceramic products.

What is the advantage of Laboratory Sieve Shaker Machine?

1. Adjustable amplitude and frequency settings, allowing for customization of the shaking intensity to suit the material being tested.

2. Multiple sieving modes, including continuous and intermittent shaking, as well as manual mode for precise control.

3. Digital display of parameters such as time, amplitude, and frequency for easy monitoring and recording of results.

4. Robust construction and materials, ensuring long-lasting durability and reliable performance.

5. Compatibility with a wide range of sieve sizes and types, allowing for flexibility in testing various materials and particle size ranges.

How does the Laboratory Sieve Shaker Machine work?

Laboratory Sieve Shaker Machine works through the application of mechanical vibrations that drive particles through the sieve, separating materials of different sizes effectively.

As the motor rotates, the sieve shaker machine uses the force generated from the vibrating mechanism to create a back-and-forth motion that forces the material and particles to move around the screen or mesh. The machine's vibration creates a sinusoidal motion that ensures that the material's particles are evenly distributed along the mesh, which helps improve the screening efficiency.

Specifications of Laboratory Sieve Shaker Machine

serial number	name	unit	parameter
01	sieve frame	layer	1~8
02	Screen frame diameter	mm	Φ200
03	Sieve particle size	mm	0.025~3
04	noise	dB	less than 50
05	amplitude	mm	0~3
06	vibration frequency	times/min	1440
07	Dimensions	length*width*height	350：350：300+N*50
08	power supply	V；HZ	220；50
09	Total Weight	Kg	36
10	Vibration motor	power	0.12KW

Laboratory Sieve Shaker Machine Mesh Sizes

Mesh and aperture conversion: (The empirical formula for the conversion between micron and mesh is as follows, the larger the mesh, the greater the error.) Micron ≈ 25.4×1000/2×mesh

mesh	Aperture（mm）	mesh数	Aperture（mm）	mesh数	Aperture（mm）
2 mesh	12.5	45 mesh	0.4	220 mesh	0.065
3 mesh	8	50 mesh	0.355	240 mesh	0.063
4 mesh	6	55 mesh	0.315	250 mesh	0.061
5 mesh	6	60 mesh	0.28	280 mesh	0.055
6 mesh	4	65 mesh	0.25	300 mesh	0.050
8 mesh	3	70 mesh	0.224	320 mesh	0.045
10 mesh	2	75 mesh	0.2	325 mesh	0.043
12 mesh	1.6	80 mesh	0.18	340 mesh	0.041
14 mesh	1.43	90 mesh	0.16	360 mesh	0.040
16 mesh	1.25	100 mesh	0.154	400 mesh	0.0385
18 mesh	1	110 mesh	0.15	500 mesh	0.0308
20 mesh	0.9	120 mesh	0.125	600 mesh	0.026
24 mesh	0.8	130 mesh	0.112	800 mesh	0.022
26 mesh	0.71	140 mesh	0.105	900 mesh	0.020
28 mesh	0.68	150 mesh	0.100	1000 mesh	0.015
30 mesh	0.6	160 mesh	0.096	1800 mesh	0.010
32 mesh	0.58	180 mesh	0.09	2000 mesh	0.008
35 mesh	0.50	190 mesh	0.08	2300 mesh	0.005
40 mesh	0.45	200 mesh	0.074	2800 mesh	0.003

Laboratory Sieve Shaker Machine Construction

The upper part of Laboratory sieve shaker machine is composed of fixed brass nuts, pressure plate, sieve cover, sieve frame, middle sieve frame, sieve bottom, isometric adjustment rod and so on. All parts are made of high-quality SUS304 stainless steel, which can be flexibly matched with each other and have high interchangeability.

Real customers use the scene

Sieve a dry solid material: 10 kg per hour, use a laboratory sieve shaker machine with ultrasonic waves.

Detection of calcium hydroxide: sieve mesh: 200 mesh/300 mesh/400 mesh/500 mesh, the recommended diameter is 200mm laboratory sieve shaker machine.

Screening coal and white lime: the mesh number of the screen is 3mm/200mesh/300mesh, and a laboratory sieve shaker machine with a diameter of 200mm (used in the thermal power plant in Qingdao) is selected.

Fineness detection of aluminum paste used for air-entraining blocks: use a square-hole sieve with a side length of 0.075mm.

Clay particle size detection: Standard Laboratory sieve shaker machine 100 mesh, 200 mesh R40/3 series are equipped with sieve bottom sieve cover and No. 6 plate brush.

Cassia	14 Mesh	Buckwheat	12 Mesh	Yellow mealworm eggs	12 Mesh
Soybeans	4-5 Mesh	green beans	10 Mesh	Rice	14 Mesh
Cornmeal	40 Mesh	flour	60 Mesh	Miscellaneous grains	50 Mesh
Mung bean flour	50 Mesh	Sesame powder	50 Mesh	Pine pollen	120 Mesh
Pearl powder	150 Mesh	Medicine residue	150 Mesh	Soy milk	120 Mesh
Worm dung	30 Mesh	rice flour	40 Mesh	Medicine powder	150 Mesh
Honey	120 Mesh	Soup dregs	150 Mesh	Cooking oil	200 Mesh

Laboratory Sieve Shaker Machines Sieve Report

Soil Project	standard	Test Sieve Requirements	Calibration result
moisture	Determination of soil dry matter and moisture weight method HJ 613-2011	Aperture 2mm	2.07mm
organic carbon	Determination of soil organic carbon Potassium Dichromate Oxidation-Spectrophotometry HJ 615-2011	Aperture 2mm	1.93mm
		Aperture 2mm	0.262mm
total chromium	Determination of total chromium in soil flame atomic absorption spectrophotometry HJ491-2009	Aperture 0.149mm	0.153mm
copper	Determination of soil quality copper and zinc flame atomic absorption spectrophotometry GB/T17138-1997	Aperture 2mm	2.07mm
Zinc		Aperture 0.149mm	0.153mm
lead	Determination of lead and cadmium in soil quality graphite furnace atomic absorption spectrophotometry GB/T 17141-1997 Determination of soil quality lead and cadmium KI-MIBK extraction flame atomic absorption spectrophotometry GB/T17141-1997	Aperture 2mm	2.07mm
cadmium		Aperture 0.149mm	0.153mm

Laboratory Sieve Shaker Machine Manufacturer

Dahan Laboratory sieve shaker machine manufacturer provides Laboratory sieve shaker machine, Laboratory sieve shaker, stainless steel Laboratory sieve shaker machine, ultrasonic Laboratory sieve shaker machine, electromagnetic Laboratory sieve shaker machine, magnetic levitation Laboratory sieve shaker machine, brass Laboratory sieve shaker machine, braided mesh Laboratory Sieve shaker machine, etc., the models are 75mm, 100mm, 200mm, 300mm, 400mm, etc., and the materials are stainless steel, brass, etc.
