What is feed pellet laboratory sieving machine?

Feed pellet laboratory sieving machine is an experimental equipment specially used for feed particle size analysis. It separates feed particles according to their particle size through the vibration of a series of standard sieves to help understand the particle size distribution of feed particles.

Video of feed pellet laboratory sieving machine

How does the feed pellet laboratory sieving machine work?

Feed particle laboratory sieving machines mainly uses the exciting force generated by the vibration motor to make the feed pellets on the screen jump. Particles of different sizes will pass through screens of different apertures during their movement on the screen, thus achieving separation. The laboratory screening machine for feed pellets will be equipped with a series of standard screens of different apertures for multi-stage screening.

Features of feed pellet laboratory sieving machine

1. Particle size analysis: Feed particle laboratory sieving machines can be used to analyze and screen feed particles of different particle sizes to help determine the particle size distribution of the particles.

2. Quality control and ingredient analysis: Feed particle laboratory sieving machines can detect and control the particle size and shape of feed particles to ensure that the product quality meets the standard requirements. It can also be used to separate and analyze different components in feed particles.

3. Formula optimization and production process optimization: In feed formula research, Feed particle laboratory sieving machines can help researchers screen and proportion raw materials of different particle sizes to optimize feed formulas. It can simulate the particle screening process on the production line to help manufacturers optimize the production process and improve production efficiency and product quality.

4. Particle shape analysis and new product development: Feed particle laboratory sieving machine can be used to analyze the shape characteristics of feed particles, such as circularity, aspect ratio, etc., to provide reference for product design and improvement. When developing new feed products, laboratory sieving machines can be used to evaluate and screen the particle characteristics of new materials to help determine the best production process.

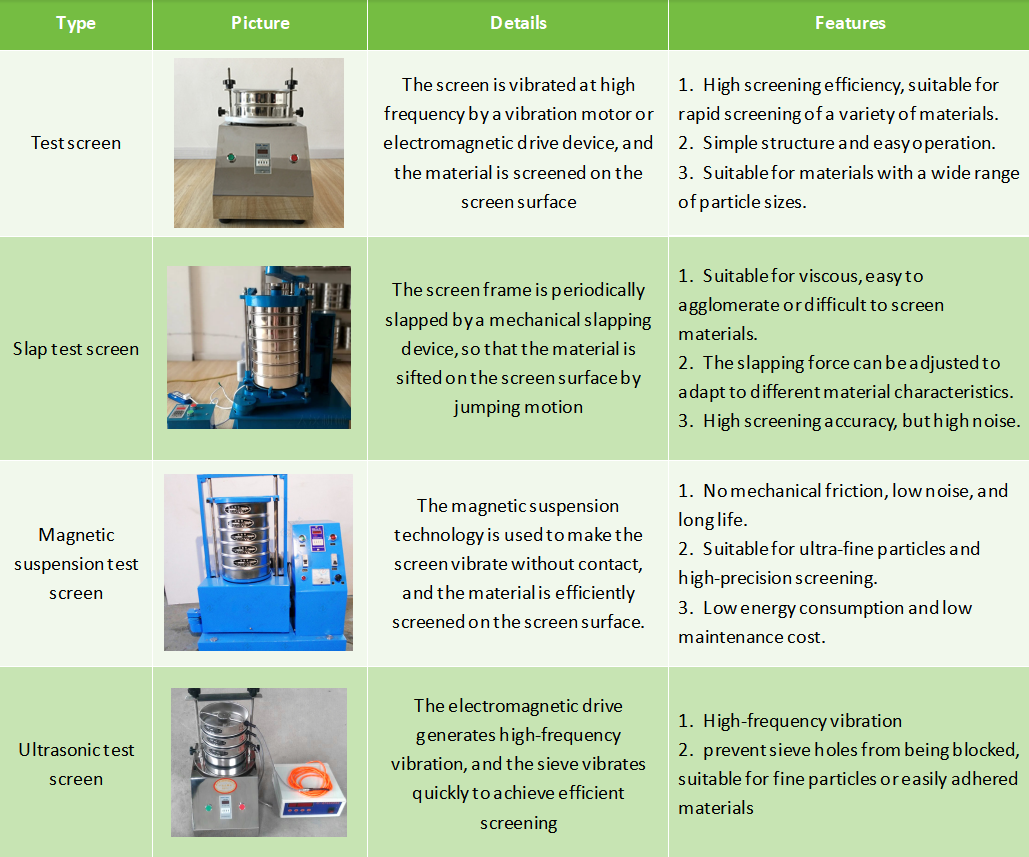

What types of feed pellet laboratory screening machines are there?

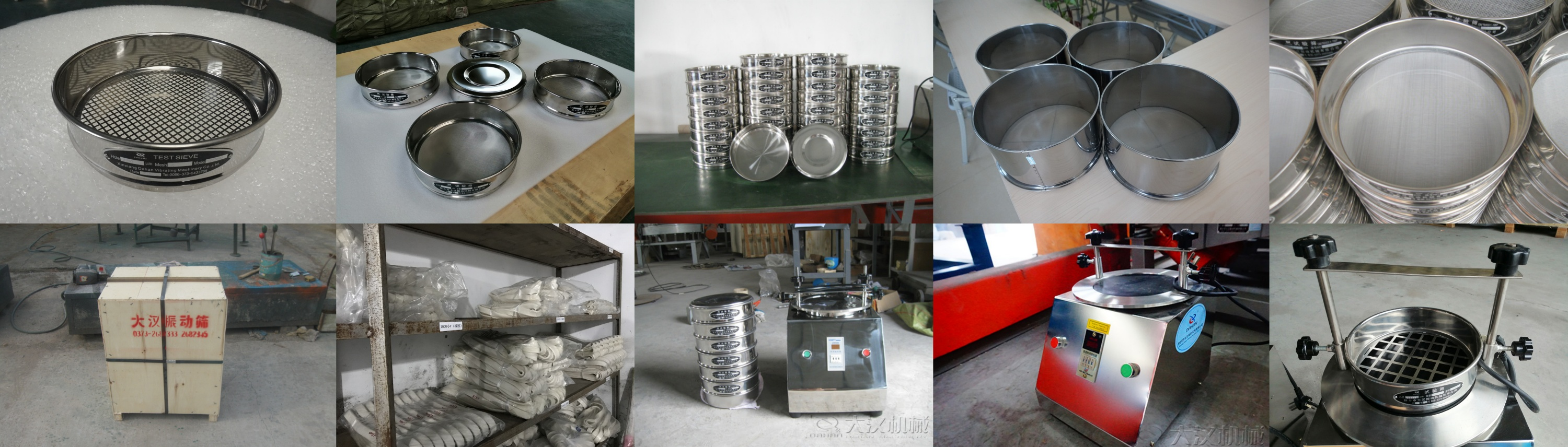

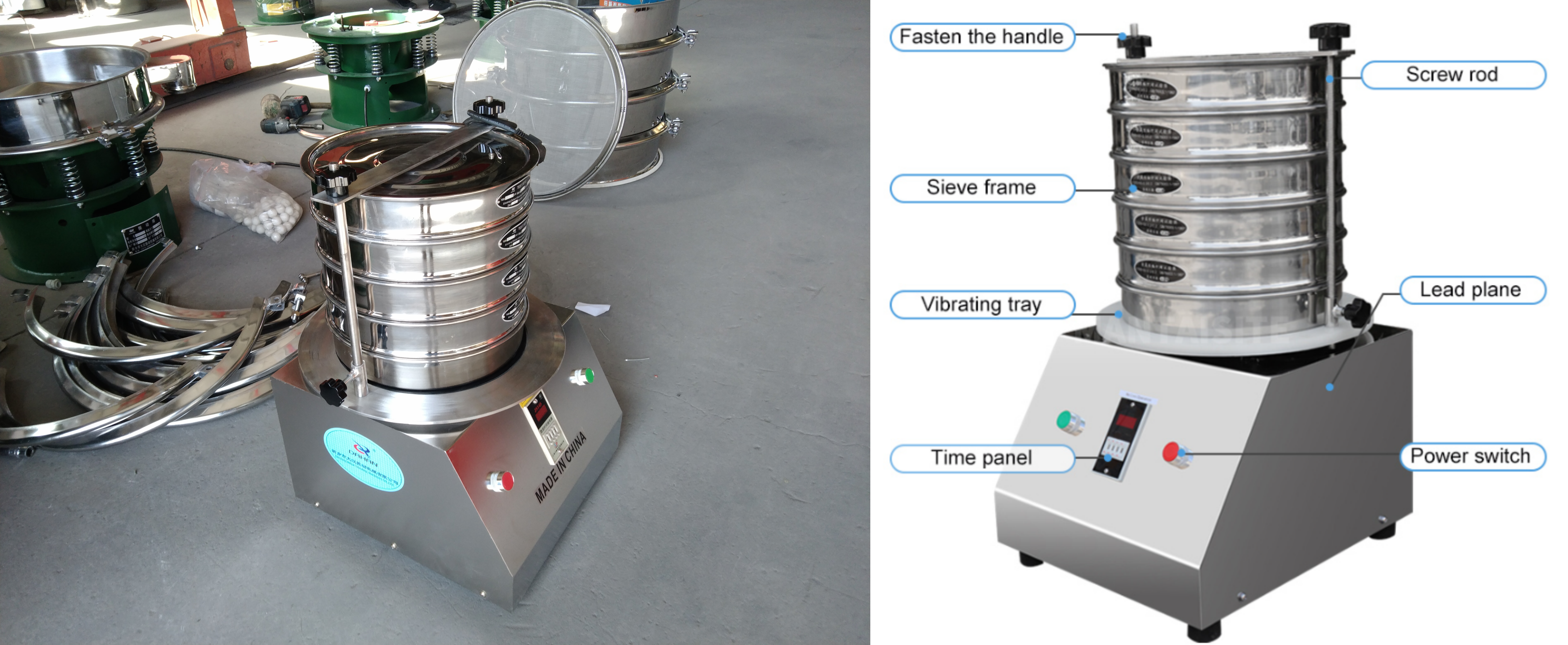

Feed pellet laboratory sieving machine parts

Sieve Frames: These are round or square frames that hold the wire mesh. They are usually made of stainless steel, which is durable and sanitary.

Sieve Mesh: A woven wire mesh with precise openings that is used to determine particle size separation. They are available in a variety of mesh sizes (apertures).

Sieve Shaker Body/Frame: This is the main housing of the machine, providing structural support and containing the vibrating mechanism.

Vibrating Motor: This motor creates the vibrating motion that moves the feed particles across the sieves.

Clamping Mechanism: This device holds the sieve stack together during operation, preventing them from moving.

Lids: Feed Pellet Laboratory Sieve Machine covers the top of the sieve stack to prevent material from leaking out during the sieving process. These are placed at the bottom of the sieve stack to collect fines.

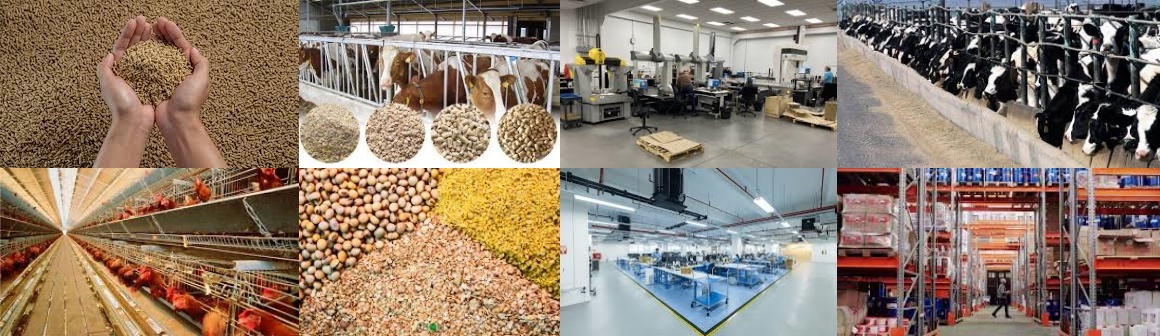

What is the application of feed pellet laboratory sieving machine?

1. Feed production enterprises: During the feed production process, the particle size of raw materials such as corn, soybean meal, and wheat bran is tested to ensure that the particle size of the raw materials meets the production requirements and the uniformity and quality of the feed products. The laboratory screening machine for feed particles tests the uniformity and particle size distribution of feed particles to ensure that the product quality meets the standards.

2. Laboratory finished product particle size detection: The particle size of feed particles in different production links is analyzed by the screening machine to understand the impact of the production process on the particle size, optimize the production process, and improve product quality and production efficiency.

3. Feed research institutions: Study the impact of feeds of different particle sizes on animal growth performance and provide a scientific basis for feed formula design. The laboratory screening machine for feed particles studies the impact of different processing technologies on the particle size of feed particles and provides experimental data for the optimization of feed processing technology.

4. Quality inspection department: Sampling and testing feed products on the market to test whether the particle size of feed particles meets national or industry standards. For example, sampling and testing of pet feed to test whether the particle size of feed particles meets the needs of pet feeding. Audit the production conditions of feed production enterprises to test whether the particle size of feed particles produced by them meets relevant regulations.

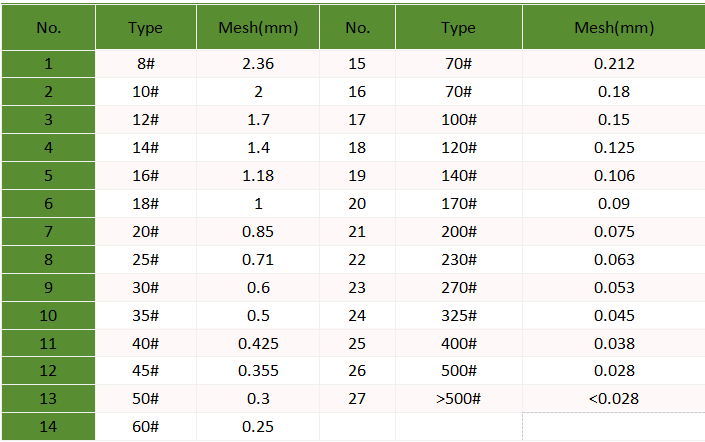

Sieve Mesh and Aperture Conversion

Feed pellet laboratory sieving machine price

The price of feed pellet laboratory screening machine varies according to brand, model, specification, function and other factors. Generally speaking, the price of small-scale screening machine with ordinary functions is about 1,000-3,000 yuan, such as some simple vibration screening machines; the price of screening machine with medium specifications and performance is 3,000-10,000 yuan, which can meet the conventional feed pellet screening needs; and the price of large-scale, high-precision screening machine with special functions or customization may be more than 10,000 yuan, or even higher.

Feed pellet laboratory sieving machine is an efficient and precise screening equipment, which is widely used in feed research and development, production and testing. Through reasonable selection, correct use and regular maintenance, its performance advantages can be fully utilized to meet the screening needs of different feed pellets.
